Puresytems Laboratory X

Features & Benefits

Features

WHO-Compliant Design

Compliance: Designed and constructed to meet or exceed relevant international BSL-3 standards (e.g., WHO Laboratory Biosafety Manual, NIH/CDC Biosafety in Microbiological and Biomedical Laboratories (BMBL))
Ensures safety, containment, and operational efficiency to meet global standards for pathogen research and diagnostics.

General Overview

Design: Modular, relocatable, and self-contained BSL-3 laboratory.
Container: Standard 40-foot High Cube shipping container (external dimensions: 12.19m L x 2.44m W x 2.90m H). Modified and reinforced for structural integrity and airtightness.
Designed for easy transport by truck, rail, or ship. Integrated lifting points and reinforced base frame.
Intelligent Systems: Integrated building management system (BMS) for monitoring, control, and data logging of critical parameters.

Physical Structure and Containment::

Primary Containment:

Airtight and leak-proof container shell with welded seams and sealant.

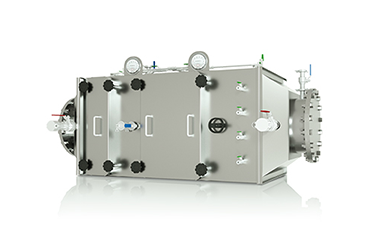

Pass-through boxes with interlocking doors for safe transfer of materials.
Class III Biological Safety Cabinet (BSC) integrated into the laboratory layout.
Secondary Containment

Primary Containment:

Airtight and leak-proof container shell with welded seams and sealant.
Pass-through boxes with interlocking doors for safe transfer of materials.
Class III Biological Safety Cabinet (BSC) integrated into the laboratory layout.

Secondary Containment:

Directional airflow with HEPA-filtered supply and exhaust air.
Negative pressure cascade system ensuring airflow from clean to contaminated areas.
Airtight doors with inflatable seals and interlocking mechanisms.
Effluent decontamination system (EDS) for treating all liquid waste.
Gaseous decontamination system (e.g., vaporized hydrogen peroxide (VHP)) for complete room decontamination

Sealed Chamber Design

Support optional NFC card unlocking, fingerprint unlocking, and facial recognition unlocking methods to meet user’s customized requirements.

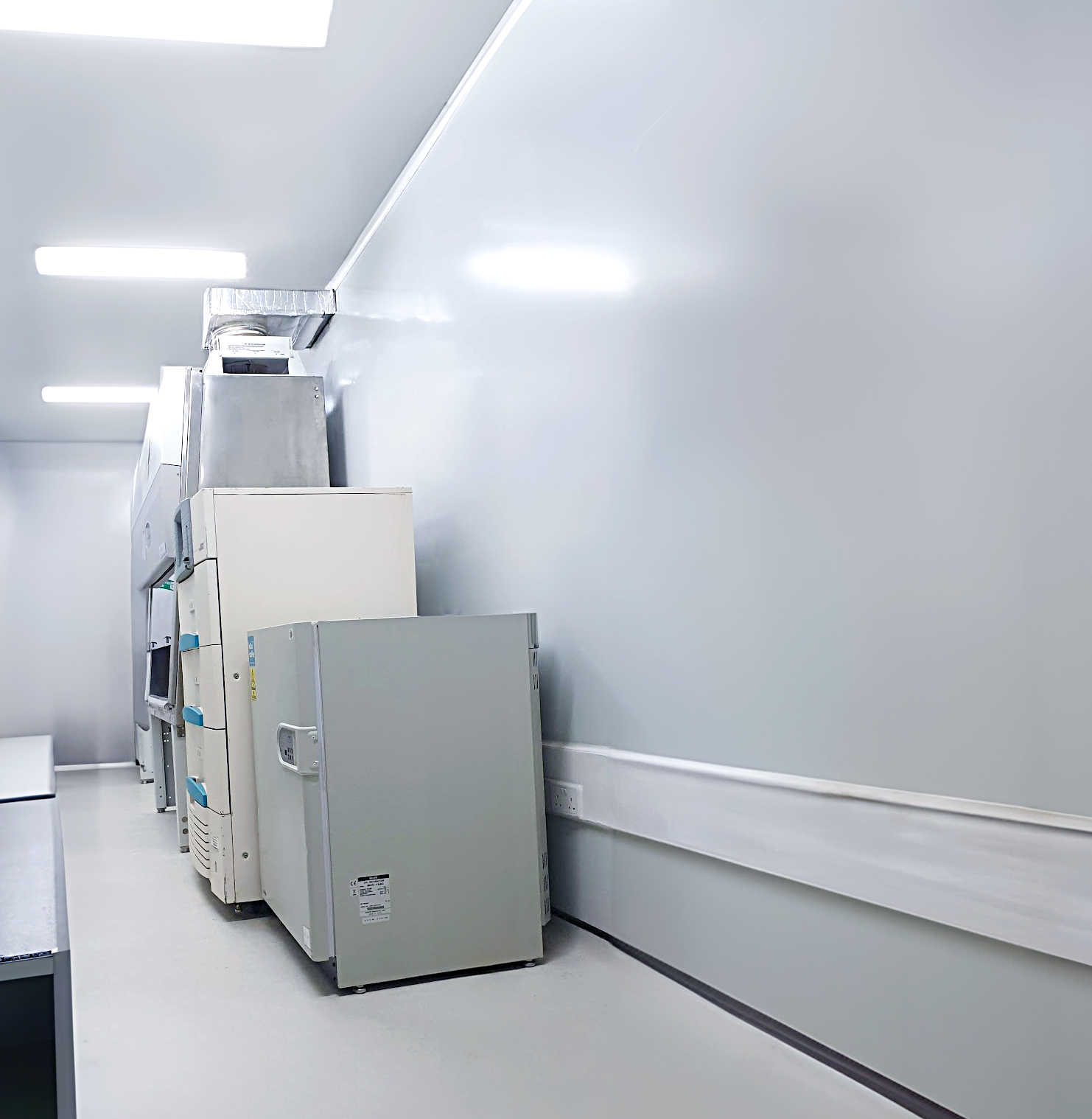

Laboratory Equipment (Examples - Customizable)

Class ii or Class III Biological Safety Cabinet (BSC)

Autoclave Certified Autoclave
Incubators (CO2 and standard)
Centrifuges (refrigerated and high-speed)
Microscopes
Refrigerators and freezers (including ultra-low temperature
Laboratory benches and shelving.

Multi-Protection for Samples

Complete set of design and construction drawings
Equipment manuals and operating procedures.
Validation and testing reports.
Maintenance and service manuals.

Laboratory X - Advance intelligent BSL3

Comprehensive Features and Benefits of the Portable BSL-3 Laboratory

Designed in compliance with WHO (World Health Organization) standards, this portable BSL-3 laboratory is an innovative, high-containment facility engineered for safety, functionality, and versatility. Below is an in-depth breakdown of its features and benefit

HVAC and Air Handling:

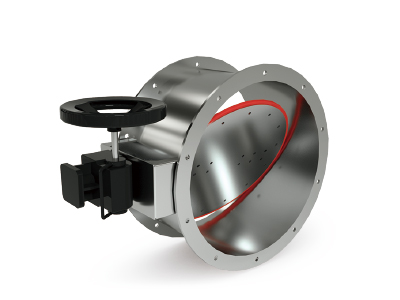

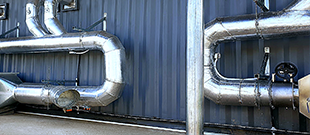

The BSL-3 laboratory is equipped with a dedicated HVAC system featuring HEPA filtration for both supply and exhaust air (99.99% efficiency at 0.3 μm particles), ensuring a sterile environment. This system includes precise airflow control to maintain directional flow and velocity, redundant exhaust fans with automatic switchover for continuous operation, and an alarm system that monitors pressure deviations, filter failures, and other critical parameters. Additionally, the sealed and airtight ductwork is fitted with backdraft dampers to prevent any contaminants from escaping.

Safety Features

The BSL-3 laboratory is further equipped with an access control system, intruder alarm system, emergency power backup and lighting, fire suppression system, and designated storage for spill kits and personal protective equipment.

Intelligent BMS Systems

The BSL-3 laboratory incorporates intelligent building management systems (BMS) with comprehensive monitoring capabilities, including real-time data on room temperature, humidity, differential pressure, airflow velocity, filter status, equipment status, and security system status. This system provides automated control of the HVAC system, lighting, and other critical building functions, ensuring optimal and safe operating conditions.

For comprehensive oversight and analysis, the BMS continuously logs data and provides remote alarm notifications via SMS, email, or other communication methods for any critical parameter deviations. Authorized personnel can also securely access the system remotely for monitoring and control purposes, and the BMS seamlessly integrates with the building's security and access control systems for added safety and control

Utilities and Services:

Electrical System: Dedicated electrical panel with backup generator. connection.

Uninterruptible Power

Supply (UPS) for critical equipment.

Plumbing: Hot and cold running water with backflow preventers. Hands-free faucets. Eye wash station and emergency shower.

Waste Management: Dedicated waste collection system for regulated medical waste. Connection to external waste treatment system

Testing and Commissioning:

Factory Acceptance Testing (FAT) before shipment
Site Acceptance Testing (SAT) after installation.
Biological safety testing and certification from third party provider
